SLW Frameless Fixed Glazing Panel
SLW Frameless Fixed Glazing Panel
SLW Frameless Fixed Glazing Panel
The Blomberg SLW is a "frameless" fixed glazing solution that uses a near-invisible aluminum perimeter channel to produce a flush-face, all-glass appearance in high-design residential, commercial lobby, and retail storefront applications. Structural silicone glazing on the exterior perimeter conceals the aluminum frame behind the glass edge — what remains is pure glass, from floor to ceiling, corner to corner.
Fabricated from 6063-T5 aluminum with a Class 1 anodize finish or custom RAL powder coat, the SLW panel accepts dual- or triple-pane Low-E IGU to achieve U-factors from 0.16 to 0.24 (NFRC). The daylight opening is maximized by eliminating visible mullion profiles between adjacent panels, creating a continuous glass plane that transforms lobbies into light-filled galleries, storefronts into transparent showcases, and residential facades into frameless panoramas.
When the frame disappears, the architecture speaks for itself.

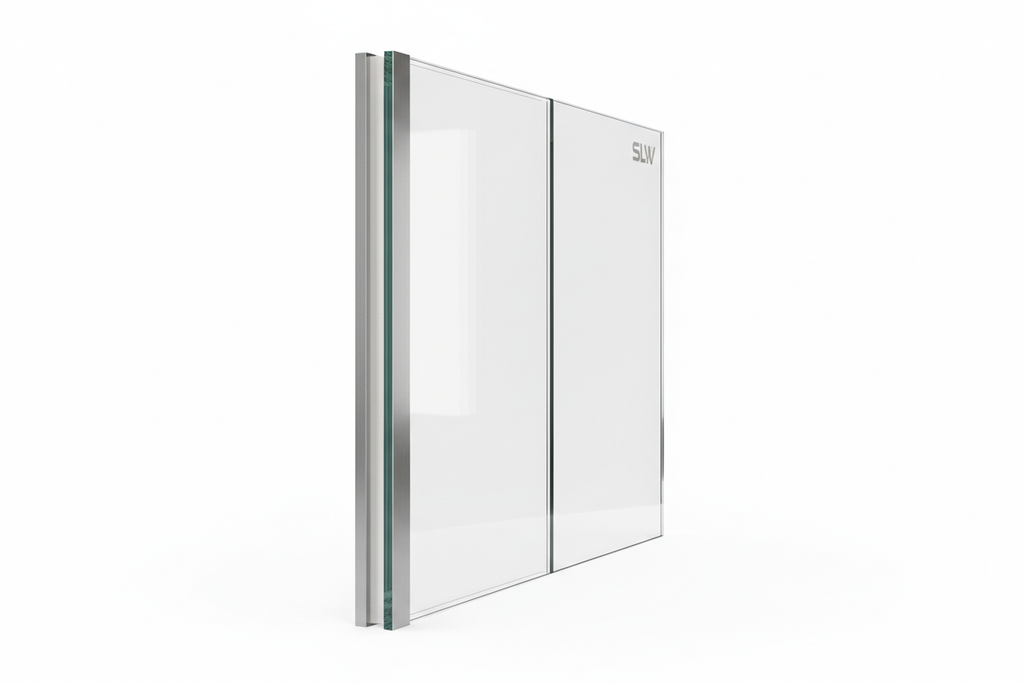

Studio View — SLW Panel with Minimal Perimeter Channel and Silicone Bead
The SLW panel on a white background, showing the near-invisible aluminum perimeter channel and the structural silicone bead along one edge. The all-glass appearance is achieved by recessing the aluminum frame behind the glass edge — the silicone bead is the only visible element at the perimeter.

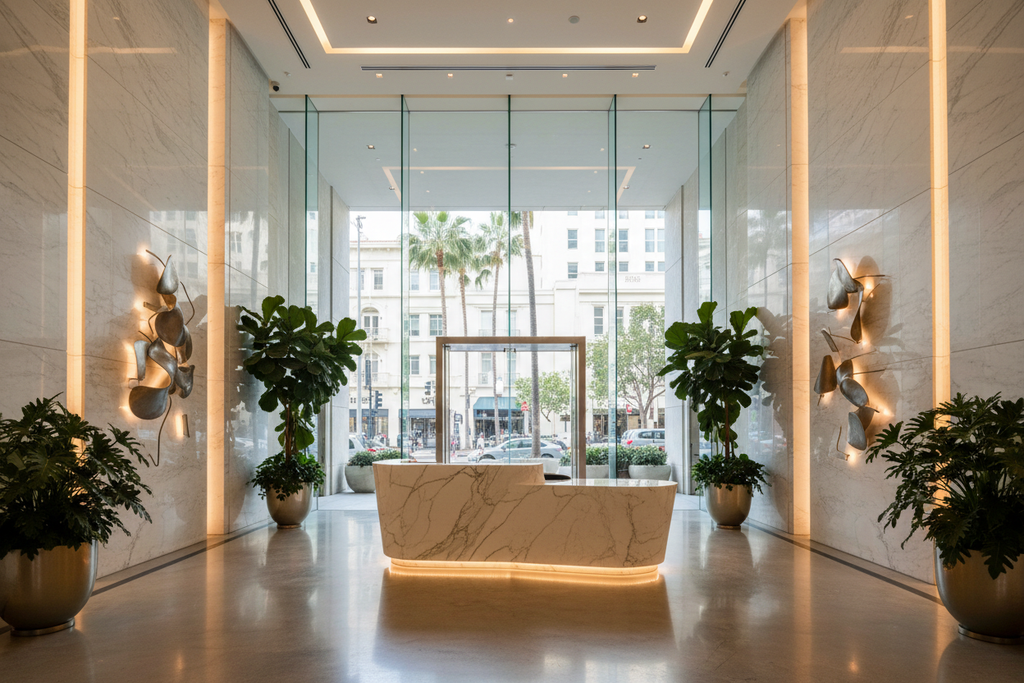

Installed Performance — Beverly Hills Luxury Tower Lobby
SLW panels forming a seamless floor-to-ceiling glass wall in the marble-clad lobby of a Beverly Hills luxury mixed-use tower. The aluminum frame is completely hidden — the glass wall reads as a single continuous plane behind the sculptural reception desk, with curated art lighting and polished concrete floors completing the composition.
Structural Silicone Joint Detail — Zero-Mullion Glass-to-Glass Butt Condition
The structural silicone glazing joint at the corner of two adjacent SLW panels, illustrating the zero-mullion glass-to-glass butt condition. The silicone bead width is the only interruption in the continuous glass plane — no aluminum, no cap, no visible frame between panels.
Specifications
| Parameter | Value |
|---|---|
| System | SLW Frameless Fixed Glazing — Blomberg Windows |
| Glazing Method | Structural silicone glazing; aluminum perimeter channel concealed behind glass edge |
| Frame Visibility | Near-invisible — flush-face, all-glass appearance; no visible mullion between adjacent panels |
| Glazing Configuration | Dual- or triple-pane Low-E IGU (project-specified) |
| U-Factor Range (NFRC) | 0.16 – 0.24 BTU/hr·ft²°F (dual- to triple-pane) |
| Finish Options | Class 1 architectural anodize; custom RAL AAMA 2605 PVDF powder coat |
| Max Panel Size | Per project engineering; contact for span and load limits |
| Application | High-design residential, commercial lobby, retail storefront, institutional facade |
Extrusion Alloy: 6063-T5 aluminum | Joint Type: Glass-to-glass butt condition, structural silicone | Manufacturing: Blomberg Windows, Sacramento, CA, USA
