The LCD is the result of Blomberg's strategic partnership with La Cantina — combining La Cantina's industry-leading multi-panel bi-fold hardware with Blomberg's T450N mullion profiles to deliver matched 5/8" sightlines, a thermally-broken aluminum frame, and configurations up to 10 panels wide for grand indoor-outdoor openings in luxury residential and hospitality projects.
The LCD ships with a factory-installed hurricane-rated sill option tested to ASTM E1886/E1996 Large Missile Impact standards, making it the specification-grade choice for coastal and hurricane-exposure projects from Malibu to Miami. Available in all-aluminum or thermal-strut configurations to meet local energy codes, the dual Low-E IGU with argon fill achieves a NFRC U-factor of 0.24 with SHGC options from 0.20 to 0.55 for precise solar control in warm climates.
When the panels fold and stack, the opening is total — a seamless threshold between interior and exterior that transforms a room into a pavilion, a living room into a terrace, a lobby into a courtyard.

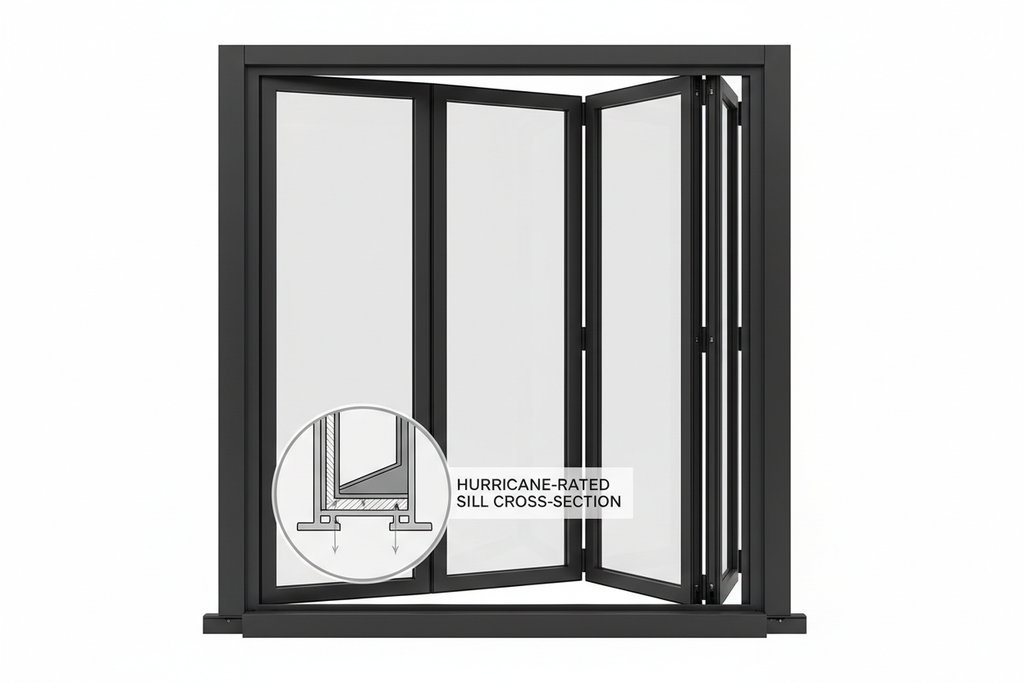

Studio View — 4-Panel Bi-Fold Unit, Fully Stacked Open
The LCD shown in a 4-panel configuration, fully stacked open to one side. T450N mullion profiles maintain the 5/8" sightline family match. The hurricane-rated sill cross-section callout illustrates the ASTM E1886/E1996-tested sill assembly at the base.

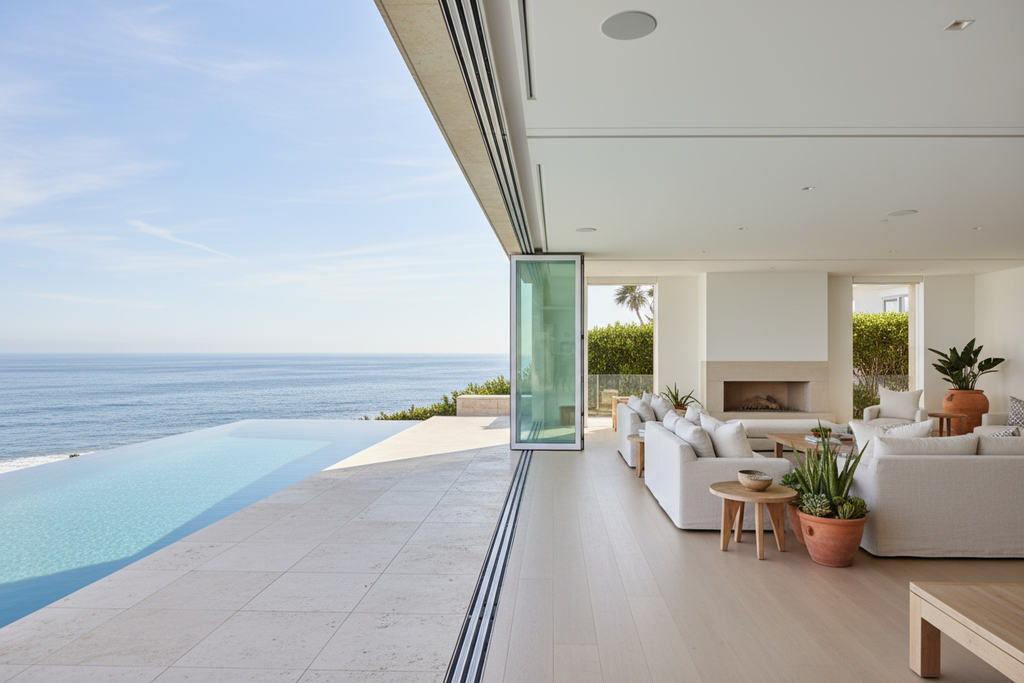

Installed Performance — Malibu Beachfront Estate, Pacific Infinity Pool
The LCD bi-fold wall folded completely open at a Malibu beachfront estate, dissolving the boundary between the great room and the Pacific-facing infinity pool deck. At midday, the ocean horizon fills the opening — the aluminum frame disappears, and the view becomes the architecture.

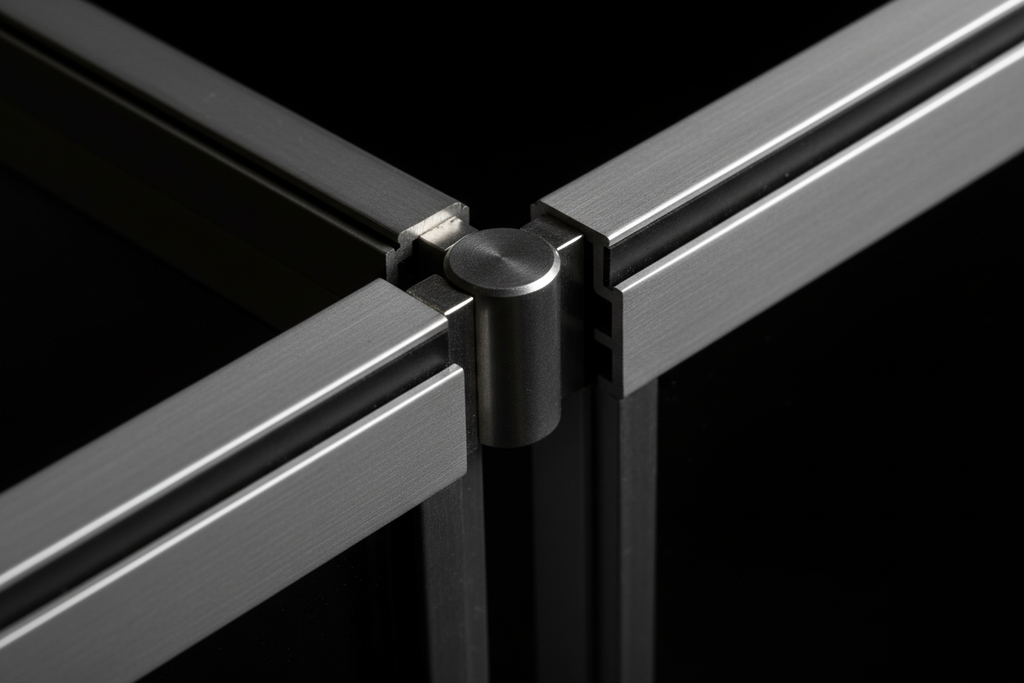

Thermal-Strut Corner Joint Detail — La Cantina Hinge Knuckle × T450N Mullion
The thermal-strut corner joint at the top rail, where the La Cantina bi-fold hinge knuckle integrates with the Blomberg T450N-matched mullion profile. The thermal strut isolates interior and exterior aluminum faces, maintaining thermal performance at the most complex junction in the assembly.
Specifications
| Parameter | Value |
|---|---|
| System | LCD Multi-Slide Bi-Fold Door — Blomberg × La Cantina |
| Max Panels | Up to 10 panels wide |
| Sill Type | Factory-installed hurricane-rated sill; ASTM E1886/E1996 Large Missile Impact tested |
| Hurricane Rating (ASTM) | ASTM E1886 / E1996 Large Missile Impact compliant |
| U-Factor (NFRC) | 0.24 BTU/hr·ft²·°F |
| SHGC Range | 0.20 – 0.55 (solar control options for warm climates) |
| Thermal Configuration | All-aluminum or thermal-strut (polyamide) — per local energy code |
| Max Panel Width | Per project engineering; contact for configuration limits |
Mullion Profile: T450N-matched, 5/8" sightline | Glazing: Dual Low-E IGU, argon fill | Hardware: La Cantina bi-fold hinge system | Finish: Class 1 anodize or AAMA 2605 PVDF powder coat — custom RAL available
