Concealed European-Style Hinge — 220 lb Rated

Concealed European-Style Hinge — 220 lb Rated

This concealed European-style casement and awning hinge is engineered for direct installation into Blomberg T450N and T600N aluminum sash and frame profiles, providing a fully concealed mechanism when the window is closed and a clean architectural aesthetic consistent with the 5/8" sightline system. When the sash is open, the precision hinge geometry is revealed — a testament to the engineering that makes 220 lbs feel effortless.

Fabricated from 316 stainless steel with a corrosion-resistant passivated finish, this hinge is specified for coastal applications where salt air and moisture demand the highest material standard. 3D field adjustment (vertical, horizontal, and compression) via hex-key allows precise sash alignment after installation without removing the sash from the frame. Complies with AAMA 920 and EN 1935 Grade 13 cycle durability standards — the highest classification in the European standard for architectural hardware.

In an architect's design review, it's the hinge that gets passed around the table. The one that makes specifiers reach for their pen.

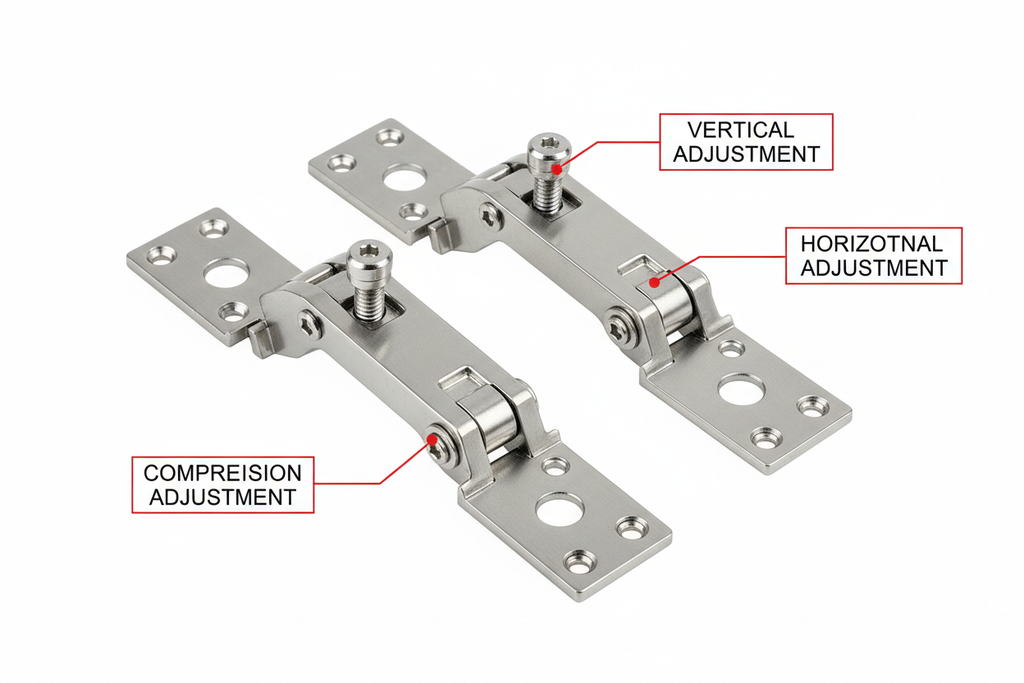

Studio View — Disassembled Hinge Set with 3D Adjustment Callouts

The complete hinge set — pair of arms and mounting plates — fully disassembled with the three hex-key adjustment points labeled by callout arrows: vertical, horizontal, and compression. 316 stainless steel with passivated finish throughout.

Design Review — San Francisco AIA Studio, Hex Key 3D Adjustment Demo

The hinge mounted in a sample T450N sash profile section during a design review at a San Francisco AIA studio. A hand demonstrates the hex-key 3D adjustment — the kind of field-adjustability that makes installation teams and project managers equally happy.

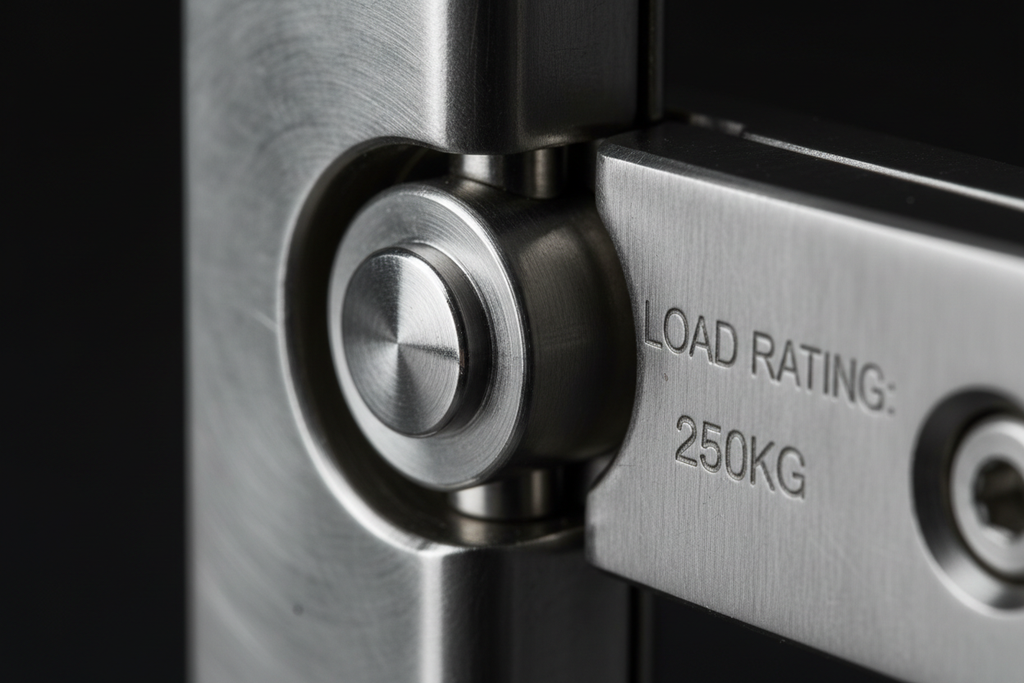

316 SS Pivot Pin and Load-Bearing Roller Detail

The 316 stainless steel pivot pin and load-bearing roller at the hinge center, showing the mirror-polished contact surfaces and the 220 lb rated load stamp on the hinge body. The precision of the contact geometry is what makes the load rating possible — and what makes the sash feel weightless in operation.

Specifications

Sold as: Pair (2 hinge arms + mounting plates)  |  Installation: Direct mortise into T450N/T600N extrusion cavity  |  Tool Required: Hex key (included)
